UV 5RH 10W Full Bands Walkie Talkie
UV 5RH 10W Full Bands Walkie Talkie
Couldn't load pickup availability
Wirless Copy Frequency Type-C Charger Upgraded UV 5R Transceiver Ham Two Way Radio
SPECIFICATIONS
Storage Channel: 999
Dimensions: 130mmX58mmX40mm
Brand Name: BAOFENG
Model Number: UV-5RH
Battery Capacity(mAh): High Capacity
Frequency Range: 6 Bands
Walkie Talkie Type: Portable
Material: Plastic
Is_Display: Yes
Origin: Mainland China
Maximum Range: 5km-10km
Waterproof / Water-Resistant: IP45
Output Power(w): 5w-10w
Choice: yes
★【Upgraded UV-5R】
UV-5RH is a professional ham radio, True 10W high power, High/Mid/Low Tri-Power Switchover. Up to 999channels.1.77 inch color screen.

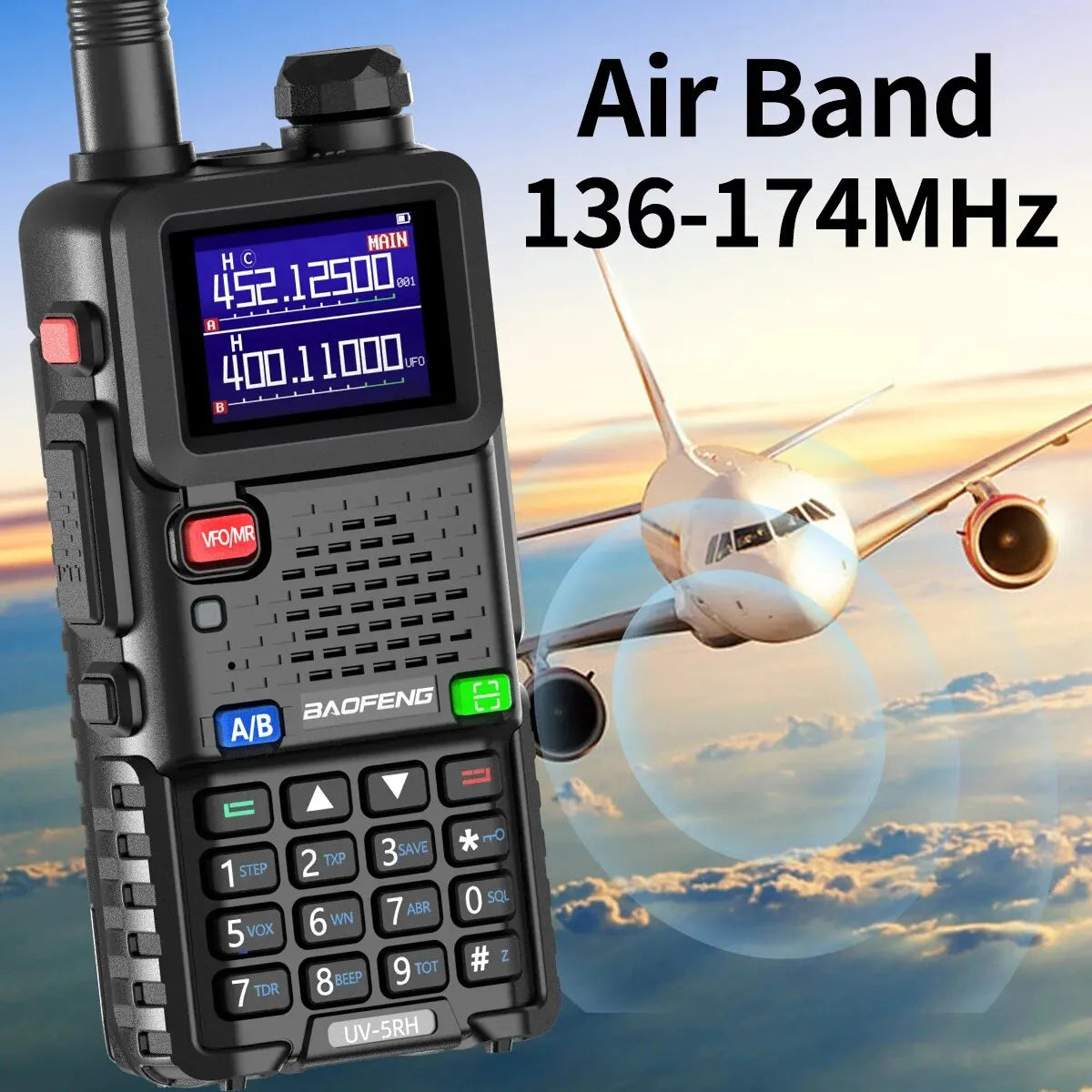

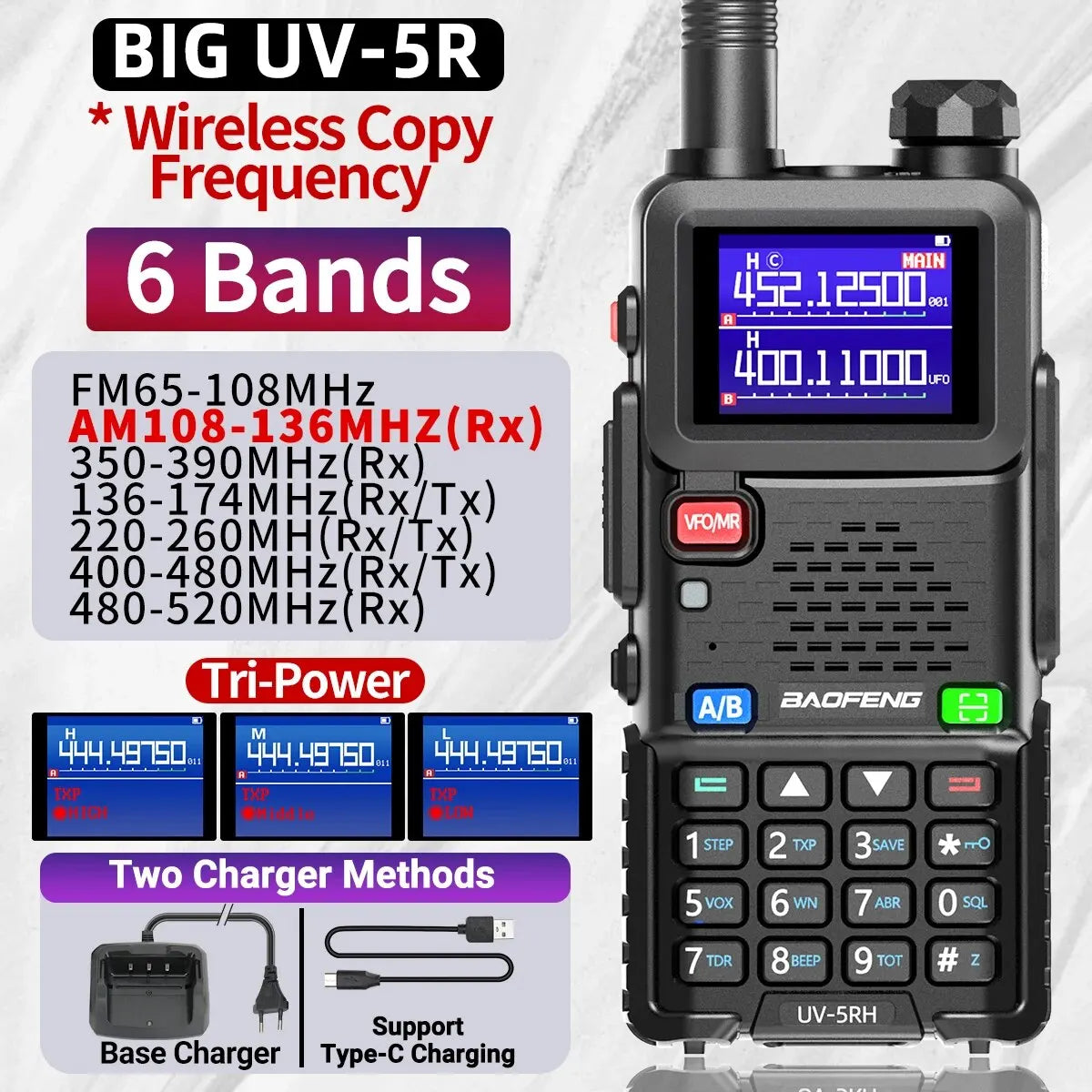

【Frequency】
68-108MHZ(RX)
108-136(RX)
350-390(RX)
136-174MHZ(TX/RX)
220-260MHZ(TX/RX)
400-480MHZ(TX/RX)
480-520(RX)

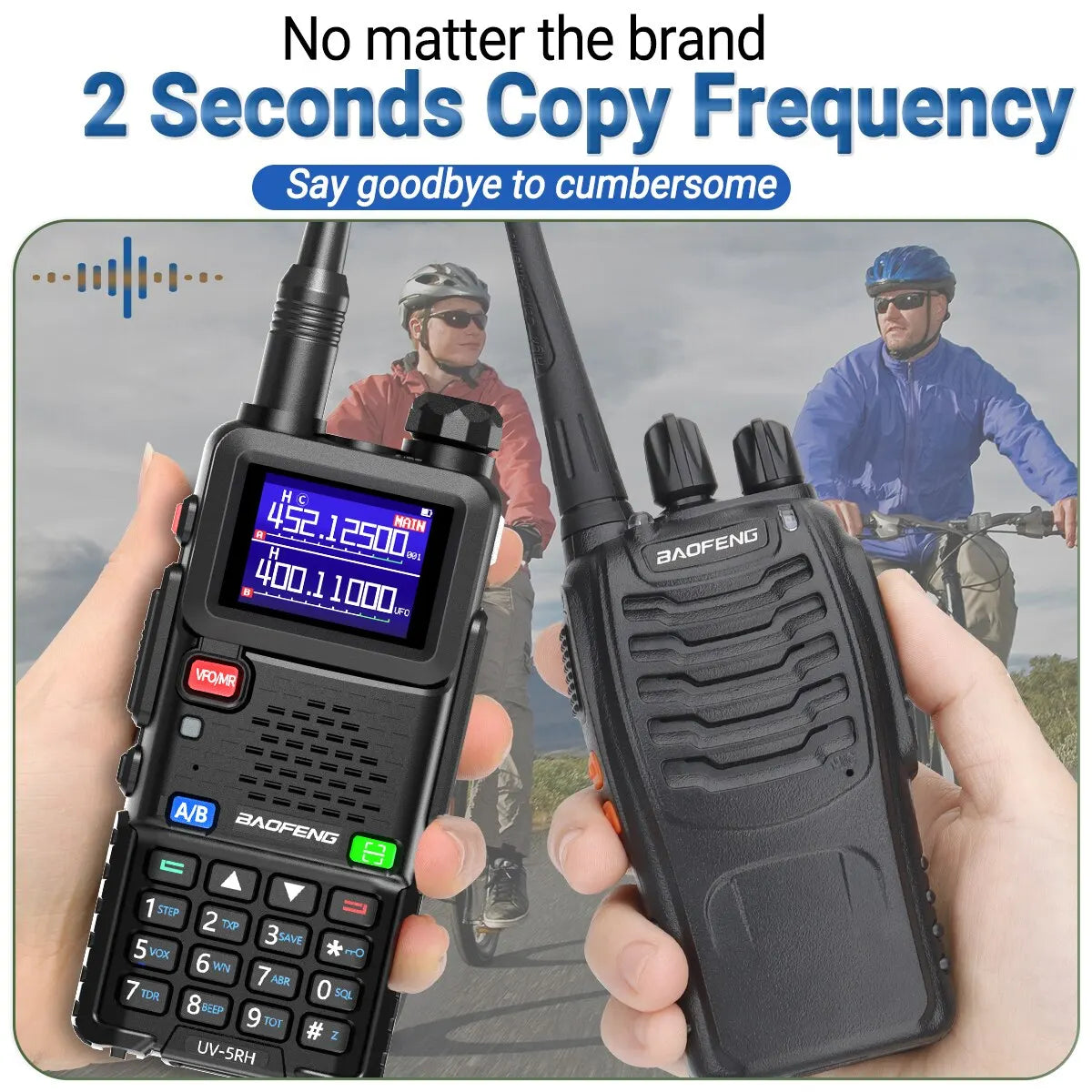

★【Wireless Copy Frequency 】
Press the One Touch search key button to enter the“SEARCH”interface. And the UV-5RH will search for another radio transmission frequency and privacy code. Finally press the menu to store the frequency. Two walkietalkies can communicate normally. Communication is unobstructed, and traditional writing frequency is rejected.
★■ Type-C USB Charging ·
Type-C charging is a trend for mobile devices as it has low requirements for power sources and places. The UV-5RH is Type-C USB rechargeable, for which you can easily charge it like a phone in your car, with a power bank or laptop. Portable for your go-kit.
★In'' Built-in displayreother.
With1.77Inch Large Screen,Display SYNC, You can see both the channel name and frequency information on the display; With Squelch adjustable in 9 levels,It can help you communicate clearly in many environments;Hands-Free Operation (VOX) lets you transmit directly through voice.
★【LED FLAShlight】
LED spotlight, life emergency helper, Powerful, it can also change into a flashlight in seconds, lighting up your dark night anytime, anywhere.
★【PC & Manual Programmable】
Apart from programming the radio via computer software, users can also use the keypad to program most settings in the menu, for example, adding/deleting a memory channel, adding/removing a channel from the scanning list, adjusting VOX/squelch/power save levels, etc.
|
AllofouritemsareBrandNew |
||
|
Model |
BaofengUV-5RH |
|
|
Dual Band/Dual Display/Dual Standby |
A/Bbandindependentoperation(UVUUVV) |
|
|
128groupschannelsstorage |
Shortcutmenuoperationmode |
|
|
VFO&Memorychannelsscan |
EmergencyAlarm |
|
|
Time-outTimer(TOT) |
0~9gradesVOXselectable |
|
|
PTT&ANIID |
FMradioand25stationsstorage |
|
|
Voicecompanding |
50CTCSS/104DCS |
|
|
High/LowTXpowerselectable |
Busychannellock-out(BCLO) |
|
|
DTMFfunction |
OFFSETfunction |
|
|
Wide/NarrowBand(25kHz/12.5kHz) |
Yes |
|
|
VOXfunction |
Yes |
|
|
Busylockoutfunction |
Yes |
|
|
Scanningfunction |
Yes |
|
|
Monitorfunction |
Yes |
|
|
Time-outTimer(TOT)function |
Yes |
|
|
LCD display |
Yes |
|
|
Dual display |
Yes |
|
|
Batteryvoltagedisplayfunction |
Yes |
|
|
Channelnamedisplayandeditingfunctions |
Yes |
|
|
Signalstrengthindicator |
Yes |
|
|
Keypadlockfunction |
Yes |
|
|
Built-inLedtorch |
Yes |
|
|
FMradio |
Yes |
|
|
Wireclonefunction |
Yes |
|
|
Emergencyalarmfunction |
Yes |
|
|
Lowbatteryalarm |
Yes |
|
|
Powersavingfunction |
Yes |
|
|
High/MID/LowTXpowerselectable |
Yes |
|
|
ROGERSET |
YesYes |
|
|
ChineseandEnglishvoiceprompt |
Yes |
|
|
PCsoftwareprogrammable |
Yes |
|
|
RatedVoltage |
7.4VDC±10% |
|
|
Outputpower |
<=5W |
|
|
Batterytype |
Li-ionbattery |
|
|
Batterycapacity |
2500mAh |
|
|
Workingtemperature |
-20~+50°C |
|
|
AntennaImpedance |
50ohm |
|
|
Weight |
300g |
|
|
Dimension(LXWXH) |
58X40X130mm(NotAntenna) |
|
|
Frequencystability |
±2.5ppm |
|
|
Carierwavetolerance |
5ppm |
|
|
Modulation |
16K Ø F3E/11K Ø F3E |
|
|
Maxfrequencydeviation |
<5kHz(Wide) |
|
|
Modulationcharacter |
6dBperfoldfrequencypatch |
|
|
Emissioncurrent |
<1.6A(5W) |
|
|
CTCSS/DCS |
0.5±0.1kHz(Wide) |
|
|
Sensitivity |
<0.16µV(12dBSINAD) |
|
|
Silentsensitivity |
<0.2µV |
|
|
IntermediationDistortion |
<10% |
|
|
Intermodulation |
8-12mv |
|
|
Adjacentchannelselectivity(wide/narrow) |
<-65dB(Wide)<-60dB(Narrow) |
|

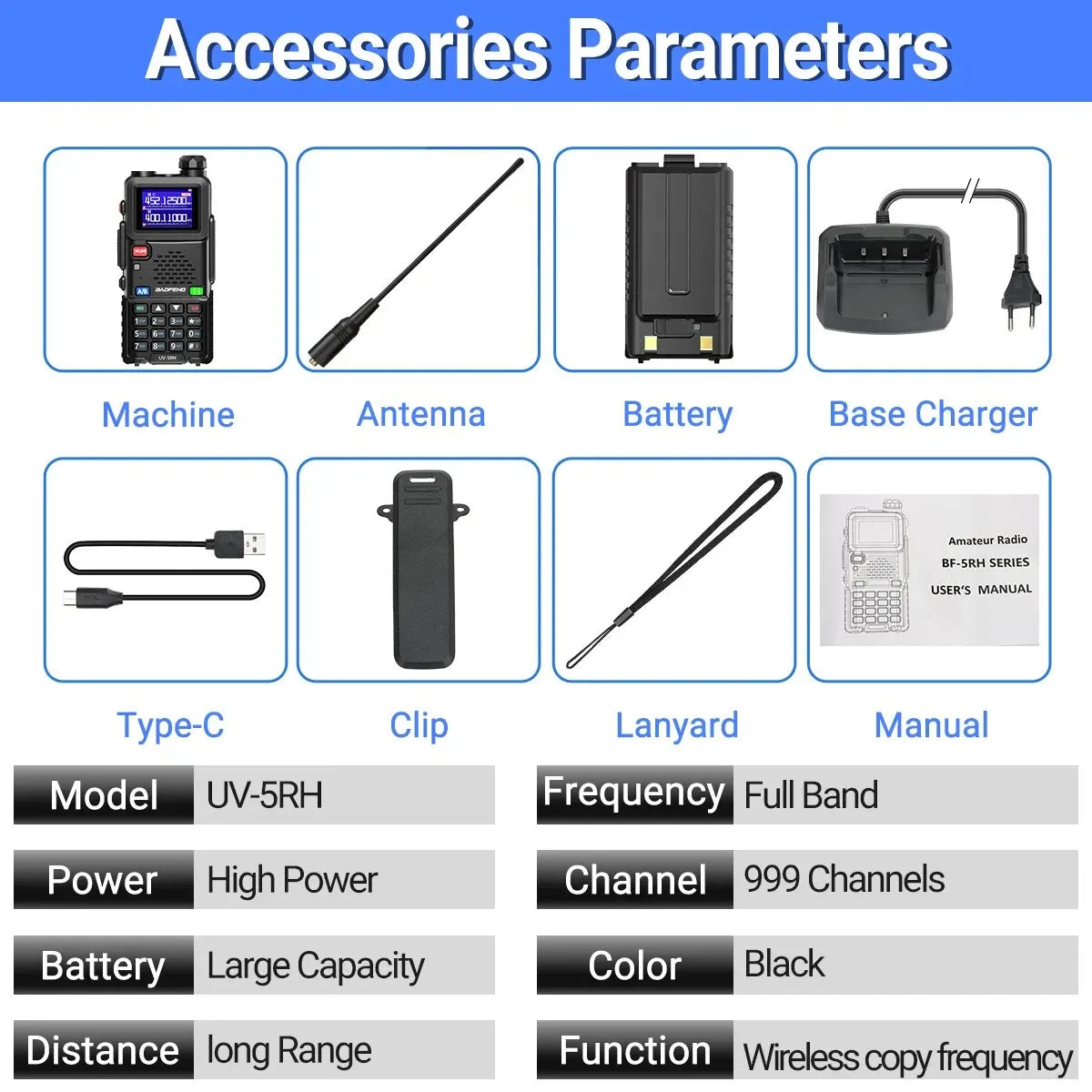

PackageInclude:
1XPortableradio
1XAntenna
1 X USB
1XLi-ionbattery pack
1XLI-ioncharger
1XBeltclip
1XThesling
1XUser'smanual
NOTICE:
*The warehouse sends EU Plug by default: Russia, Spain, Germany, Korea, France, Netherlands, Denmark, Finland, Norway, Poland, Portugal, Austria, Belgium, Hungary, Sweden, India, Italy, Ukraine, Chile, Turkey, etc.
*User Manual: The user manual we provide is English version, including paper version and electronic version, if you need electronic version, please contact us, thanks.
*How to communicate with different walkie talkies: No matter what brand of walkietalkie you use, as long as the frequency is the same, yo
